Capabilities
Diameter:
upto 5.2 meters
Length: upto 40 meters
Weight: upto 100 tons
Shell Thickness: upto 100 mm
Tube Sheet Thickness: upto 500 mm
Production Facilities
Est 1991
Unit 1 - Mahape
Plot No. 33, TTC Industrial Area, MIDC,
Near Millennium Business Park, Navi Mumbai-400 710
Unit 2 - Khairane
A-135, MIDC, KHAIRANE, TTC INDUSTRIAL AREA , NAVI MUMBAI - 400710
Unit1 - Mahape
Length: upto 40 meters
Weight: upto 100 tons
Shell Thickness: upto 100 mm
Tube Sheet Thickness: upto 500 mm
Floor Space
Overall Working Area:
4645 Sq. meters
Overall Covered Area: 3700 Sq. meters
Overall open area:
945 Sq. meters
Dish End Pressing Facility
Hydraulic Press Machine Qty 1Pressing capacity : 450 tons upto 50mm thk
Dish forming / bellow size: 4.5 m dia upto 50mm thk
Plate Rolling Facility
3 meter * 50 mm thickness: Qty 1
2.5 meter * 25 mm thickness Qty 1
Turn Table For Strip cladding/Saw welding
Capacity:
1 Ton | Qty 1
Drill Facility
Drill Machine - Radial1. Scepel RFH75 = (Arm Length - 2000mm & Max Drill - 75mm - Qty 1)
2. HMT - 65 = (Arm Length - 2350mm & Max Drill - 65mm - 1 No)
3. HMT - 63 = (Arm Length - 2350mm & Max Drill - 60mm - Qty 2)
Lathe Machine
1. Turnomax = Max OD - 700mm x 6 ft Length
2. Alpha = Max OD - 450mm x 4 ft Length
3. Bimpex = Max OD - 400mm x 4 ft Length
4. Krishna = Max OD - 1500mm x 8 ft Length
5. accu-meax = Max OD - 1000mm x 9 ft Length
CNC Machine Tube Drilling Machine
Control:- fanuc Oi-MC | Stroke:- 3 axis | Travel:- x = 4000mm y = 2250mm z = 1700mm
BTA Drilling Capacity:- 1500mm deep & Hole Drilling Capacity:- Phi 16mm to 65mm
Welding Arc & Accessories
1) Submerged Arc Welding Machine:
Qty 1 | 1200 amp
2) Gtaw+Smaw : Qty 25 | 400 amp
3) Smaw: Qty 2 | 400 amp
Welding Machines & Accessories
SAW COLUMN & BOOM:
4 METER Y AXIS *4 METER X AXIS | Qty 1
De-humidifired Store room:
Welding consumable are stored in a room equipped with dehumidifier.
Rotators
MOTORISED ROTATORS:
100TON : Qty 3
70TON : Qty 1
20TON : Qty 4
50TON : Qty 1
Cutting Facility
Air Plasma Cutting Machine:
Suitable For Ss Material Upto 50Mm Thk. | Qty 1
Lifting Capacity
EOT CranesFabrication Bay No1: 25ton & 15 ton | Qty 2
Fabrication Bay No2: 20ton & 10 ton | Qty 2
Fabrication Bay No3: 15ton & 10 ton | Qty 2
Fabrication Bay No4: 5ton | Qty 2
Plate Yard: 15ton | Qty 1
Machine Shop : 5ton | Qty 1

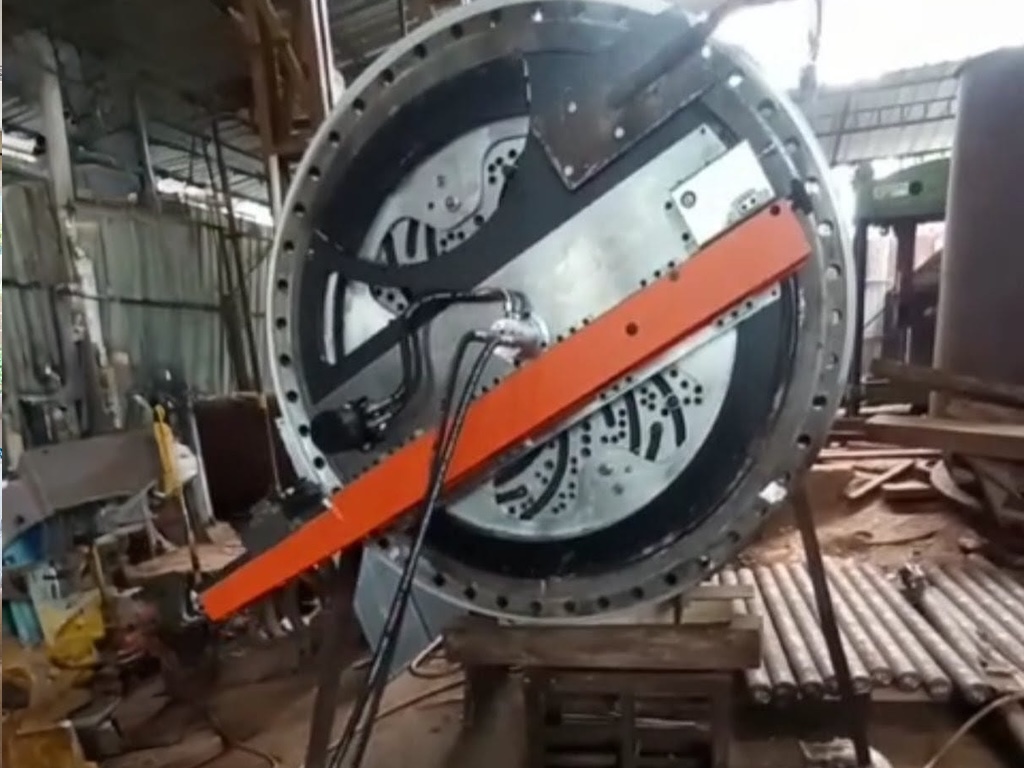

Insitu Machine
200mm to 500mm OD - Qty 1
500mm to 1600mm OD – Qty 1
1600mm to 3000mm- OD - Qty 1
Unit2 - Khairane
Capabilities
Diameter:
upto 4.3 meters
Length: upto 22 meters
Weight: upto 30 tons
Floor Space
Overall Working Area:
1000 Sq. meters
Overall Covered Area: 900 Sq. meters
Overall open area:
100 Sq. meters
Drill Facility
Drill Machine - Radial62 mm | Qty 1
Lathe Machine
Turnomax = Max OD - 700mm x 6 ft Length
Welding Arc & Accessories
1) Submerged Arc Welding Machine:
Qty 1 | 1200 amp
2) Gtaw : Qty 4 | 400 amp
3) Smaw: Qty 3 | 400 amp
Welding Machines & Accessories
SAW COLUMN & BOOM:
3METER Y AXIS *2.5 METER X AXIS | Qty 1
Rotators
MOTORISED ROTATORS:
50TON : Qty 1
20TON : Qty 2
Cutting Facility
Air Plasma Cutting Machine:
Suitable For Ss Material Upto 50Mm Thk. | Qty 1
Lifting Capacity
EOT CranesFabrication Bay No1: 15 ton | Qty 2
Side Bay: 5ton | Qty 1
Production Gallery

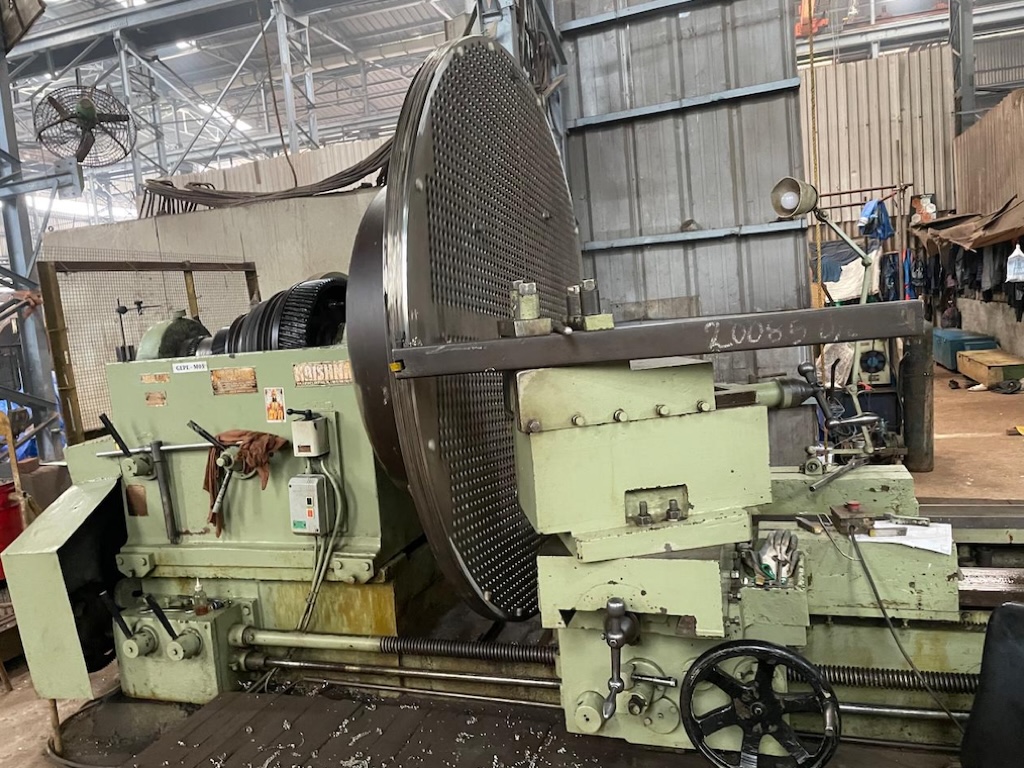

Lathe Machine
CNC Drilling Machine
